Tools & Gear Taps & Dies HSS-Co5 (Cobalt) Spiral Point Tap Sets

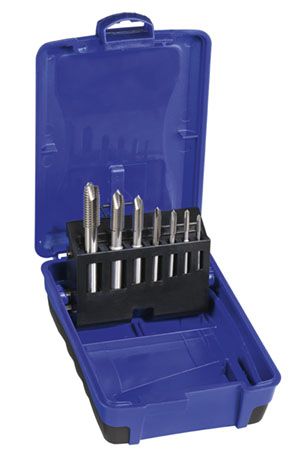

ETF612SP UNF HSS-Co5 Spiral Point Machine Tap Set UNF HSS-Co5 Spiral Point Machine Tap Set 6-40, 8-36, 10-32, 1/4, 5/16, 3/8, 1/2 HSS-Co Spiral Point (Gun Nose) Taps. Spiral point taps, also known as "Gun nose taps", have straight flutes supplemented by angular cutting faces at the lead. The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth. Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf. The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes. This allows a stronger cross section throughout the tap. Manufactured from HSS-Co5, this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads. Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.
